Discontinued Products

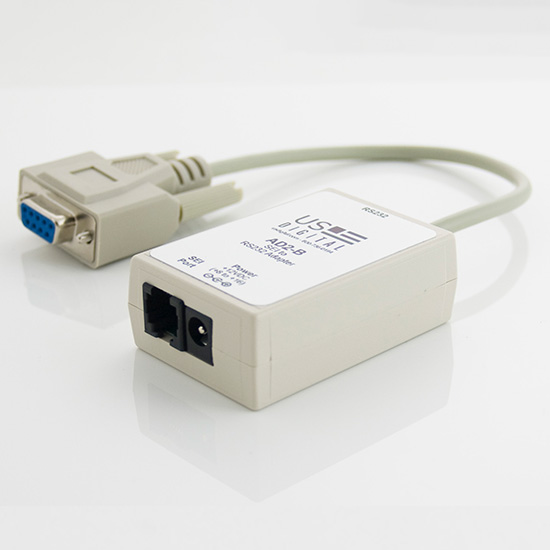

AD2B SEI TO RS-232 ADAPTER (9-PIN)

The AD2B adapter allows the RS-485-like signal of SEI devices to interface to a standard RS-232 port (9-pin DB), such as those in IBM-compatible PCs. The SEI (Serial Encoder Interface) bus is a simple, quick, and convenient network of SEI devices interfacing to an RS-232 serial port. The SEI bus...

More AD2B Details

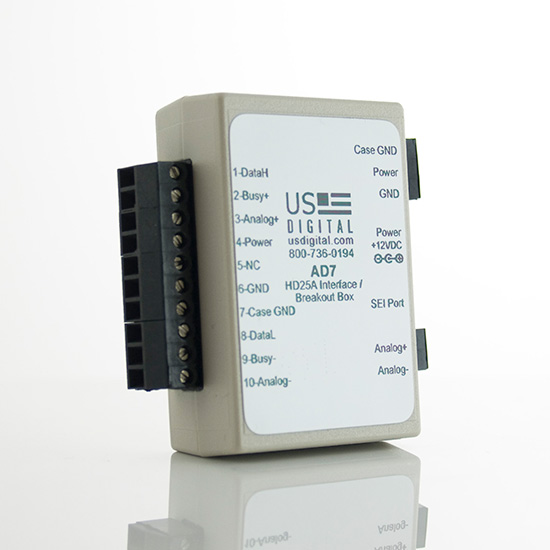

AD7 HD25A BREAKOUT BOX

Connect the HD25A to the AD7 to have easy access to both the SEI bus and the analog output. The AD7 has both a power jack for plugging in a US Digital PS-12 power supply and screw terminals for connecting a customer-supplied power supply (5.5 to 16VDC). DIN-rail mounting is available. There is a...

More AD7 Details

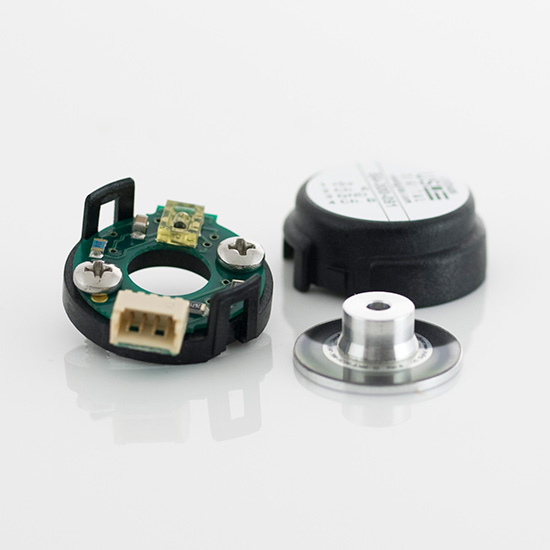

E4 Miniature Optical Kit Encoder

• Minimum shaft length of .285 in.
• Fits shaft diameters of .059 in. to .157 in. (1.5mm to 4mm)
• High retention snap-in polarized connector
• Accepts .020 in. (.5mm) axial shaft play ...

More E4 Details

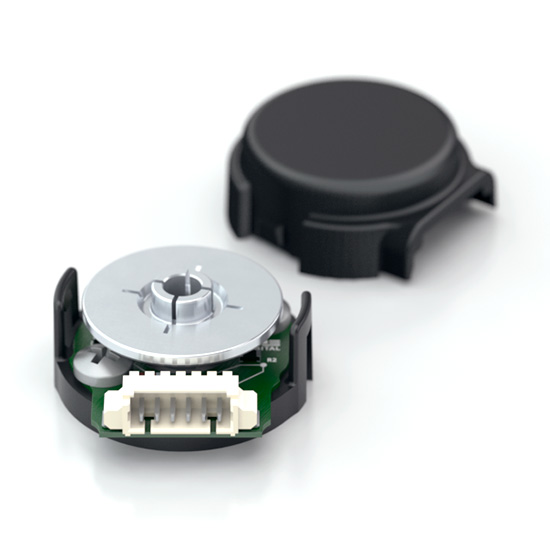

E4P OEM MINIATURE OPTICAL KIT ENCODER

• Miniature size
• Push-on hub - spring loaded collet design
• Minimum shaft length of .375 in.
• Fits shaft diameters of .079 in. to .250 in. ...

More E4P Details

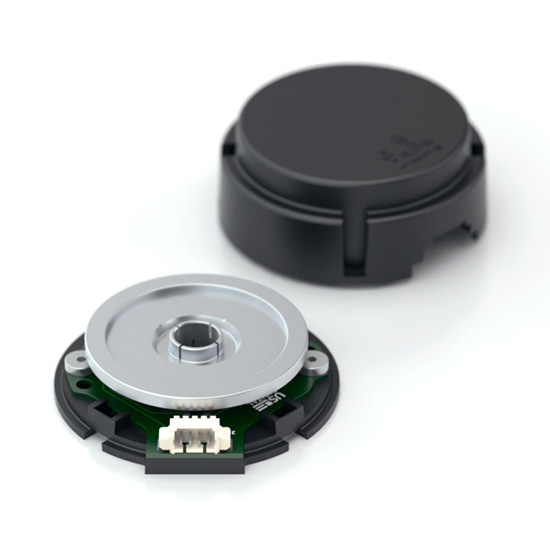

E7P OEM OPTICAL KIT ENCODER

• Quick, simple assembly
• A and B quadrature TTL outputs
• Fits shaft diameters from 0.118 in. (3mm) to 0.394 in. (10mm)
• Frequency response DC to 30 kHz ...

More E7P Details

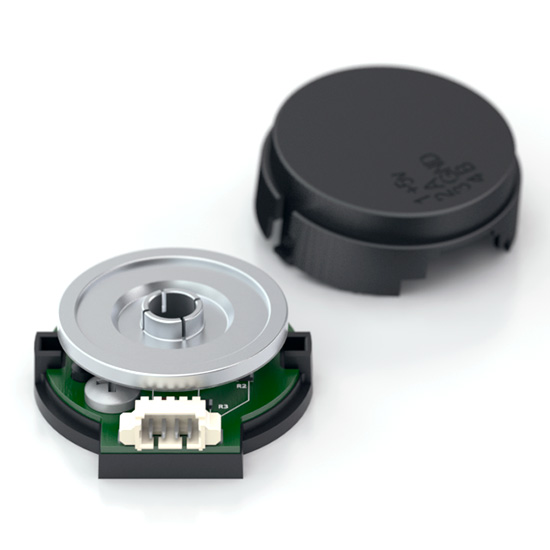

E8P OEM OPTICAL KIT ENCODER

• Subminiature size, easy installation
• Single-ended or differential output option
• A and B quadrature TTL outputs
• Fits shaft diameters from 0.118 in. (3mm) to 0.276 in. (7mm) ...

More E8P Details

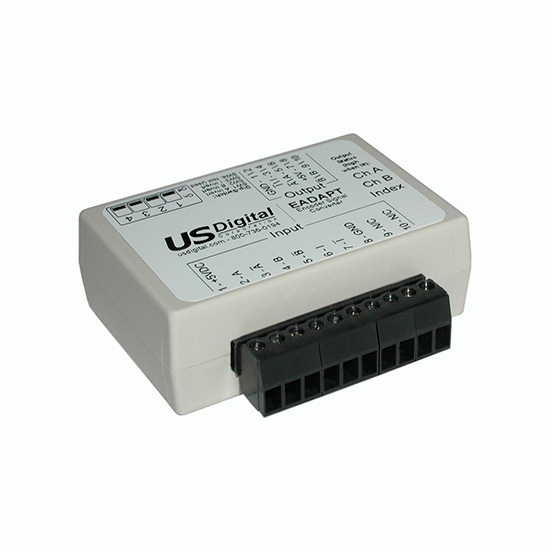

EADAPT ENCODER SIGNAL CONVERTER

• Single-ended or differential encoder inputs
• Encoder rotation sense reversal
• Index gating and polarity adjustments
• DIP switch programming ...

More EADAPT Details

ED3 Digital Encoder Display

• Seven 0.5 in. high numeric digits with blue backlight
• Bidirectional counting, displays signed values from 0.000001 to 9999999
• Programmable scale factor for output display
• Three LEDs to indicate High, Match, or Low setpoints ...

More ED3 Details

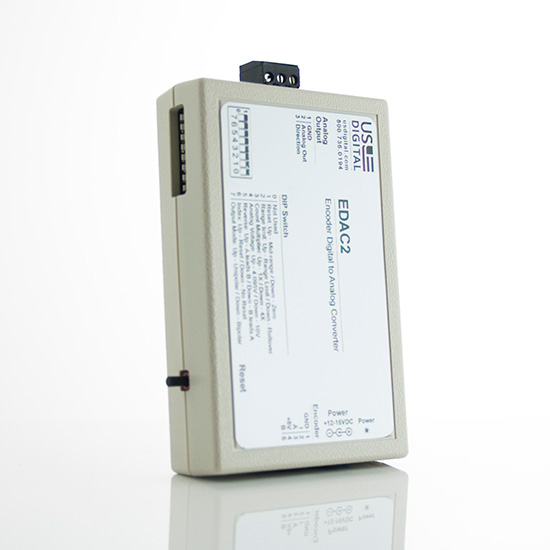

EDAC2 ENCODER DIGITAL TO ANALOG CONVERTER

• Converts any incremental encoder into an analog position sensor
• 12-bit analog resolution
• 0 to 4.095V or 0 to 10V unipolar output voltage operation
• ± 4.095 or ± 10V bipolar output voltage operation ...

More EDAC2 Details

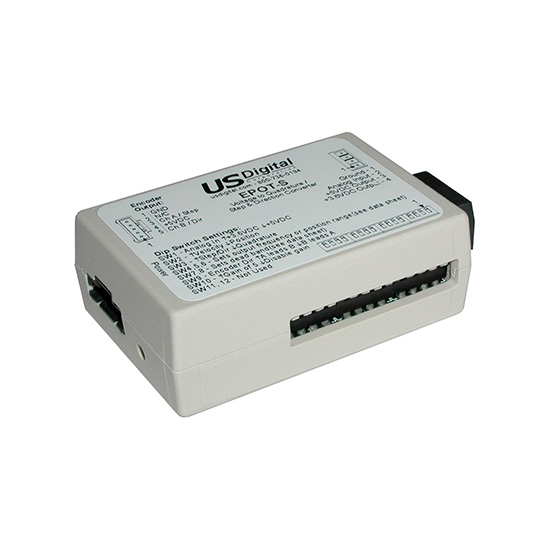

EPOT VOLTAGE-TO-QUADRATURE OR VOLTAGE-TO-STEP/DIRECTION CONVERTER

• Analog voltage to quadrature or analog voltage to step and direction outputs
• Selectable velocity or position output mode
• Adjustable dead band
• Scalable output range ...

More EPOT Details

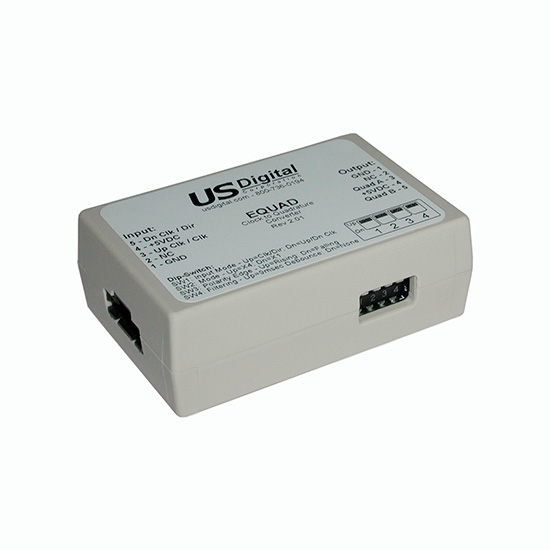

EQUAD UP/DOWN CLOCK TO QUADRATURE ENCODER

• Simple in-line installation
• Rising or falling edge triggering
• x1 or x4 quadrature mode
• Selectable debounce option

More EQUAD Details

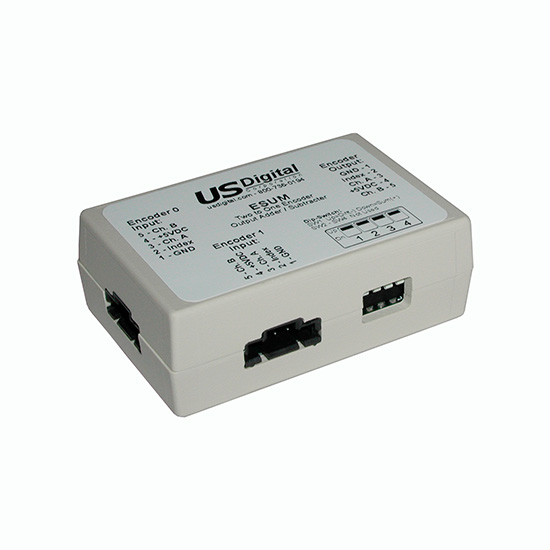

ESUM TWO ENCODERS TO ONE ENCODER ADDER/SUBTRACTOR

• Fast hardware solution
• Obtains sum or difference of 2 encoder positions
• DIN rail mount option

More ESUM Details

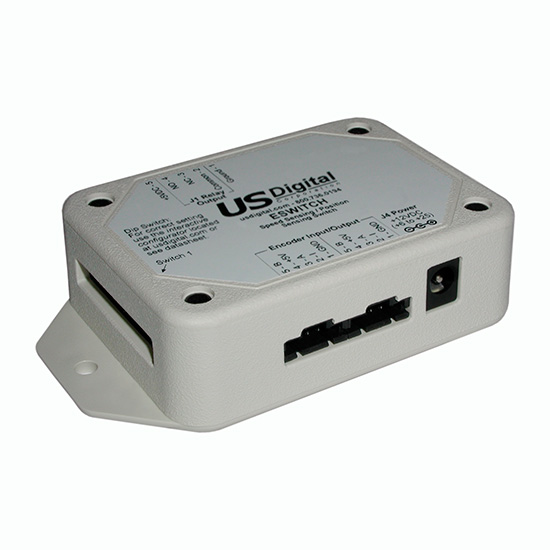

ESWITCH ENCODER SPEED/POSITION SENSING SWITCH

• Wide 6-25V supply range
• Covers most useful RPM ranges with 256 CPR encoder
• Simple DIP switch programming
• Isolated relay output

More ESWITCH Details

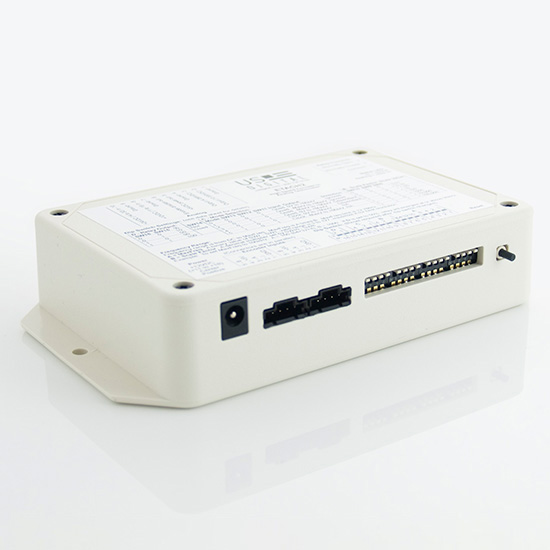

ETACH2 HIGH SPEED ENCODER TO ANALOG TACHOMETER

• 0 to 4.095V and 0 to 10V or 4.095V and 10V output
• Max. input frequency adjustable from 0.03Hz to 12.7MHz
• 7kHz update rate
• Isolated SPDT relay output for overspeed or underspeed ...

More ETACH2 Details

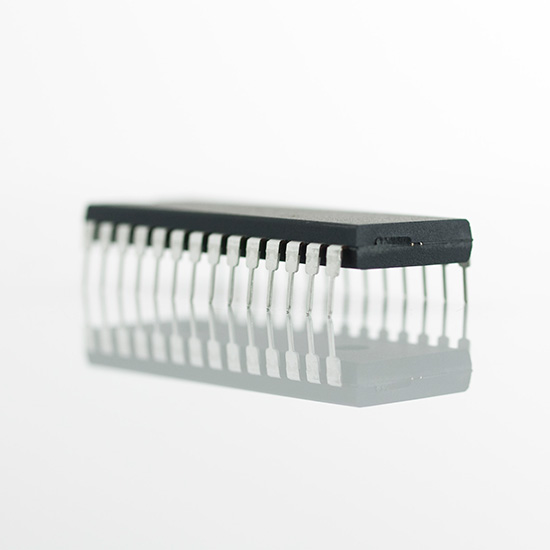

LFLS7266R1 24-BIT DUAL-AXIS QUADRATURE COUNTER

• Dual 24-bit counters to support X and Y axes in motion control applications
• Dual 24-bit comparators
• Digital filtering of input quadrature clocks
• Programmable 8-bit separate filter clock prescalers ...

More LFLS7266R1 Details

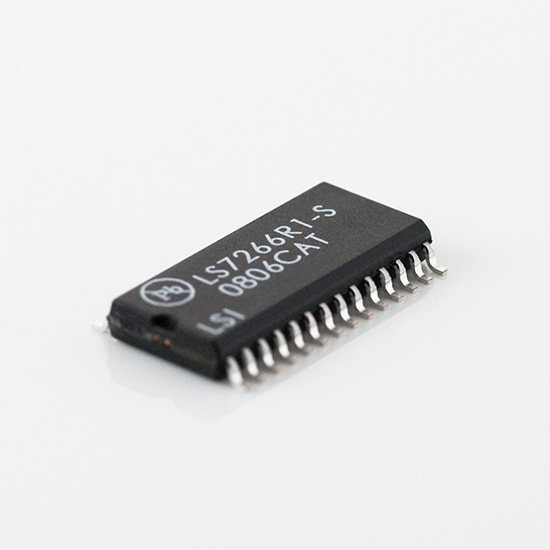

LFLS7266R1-S 24-BIT DUAL-AXIS QUADRATURE COUNTER

• Dual 24-bit counters to support X and Y axes in motion control applications
• Dual 24-bit comparators
• Digital filtering of input quadrature clocks
• Programmable 8-bit separate filter clock prescalers ...

More LFLS7266R1-S Details

LS7082N Encoder to Counter Interface Chip

• x1, x2, and x4 mode selection
• Index input
• TTL and CMOS compatible
• Low current (micro-amps) ...

More LS7082N Details

LS7082N-S Encoder to Counter Interface Chip

• x1, x2, and x4 mode selection
• Index input
• TTL and CMOS compatible
• Low current (micro-amps) ...

More LS7082N-S Details

LS7166A 24-BIT Quadrature Counter

The LSI Computer Systems LS7166A is a CMOS, 24-bit counter which you can program to operate in several functional modes. The operating modes are set up by writing configuration data into control registers. There are three 6-bit and one 2-bit control registers for configuring the functional modes. In...

More LS7166A Details

LS7166A-S 24-BIT Quadrature Counter

• Programmable count modes
• DC to 40MHz count frequency
• 8-bit I/O bus for μP communication and control
• 24-bit comparator for pre-set count comparison ...

More LS7166A-S Details

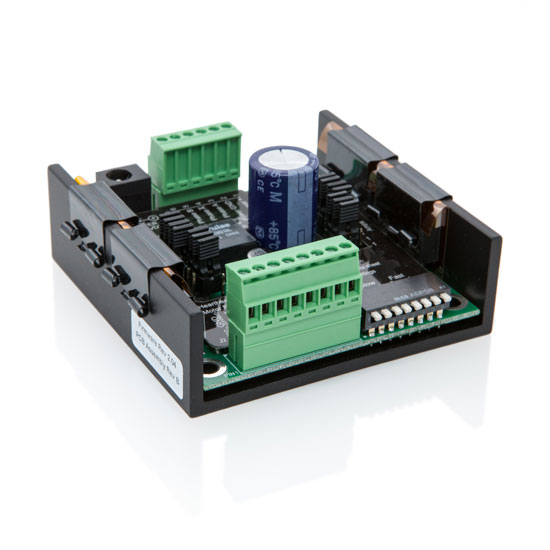

MD2S MICROSTEPPING MOTOR DRIVER

• 31 microstepping resolutions from 2 to 256 microsteps per step
• 0.5 to 7.0 amps peak per phase current in 0.5 amp increments
• Low current option: 0.20 to 3.6 amps per phase current in 0.05 amp increments
• Single +16 to +50V supply voltage ...

More MD2S Details

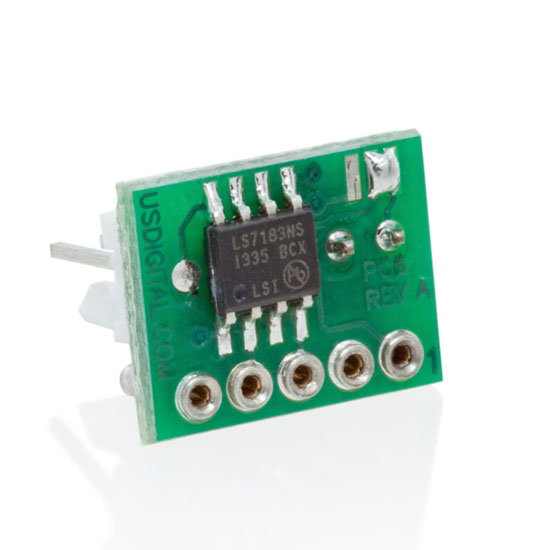

PC6 Encoder to Counter Interface Board PC6

This encoder interface is no longer available.Please note: The encoder interface IC used in this product can be purchased separately (see the LS7183N-S & LS7184N-S pages).

More PC6 Details

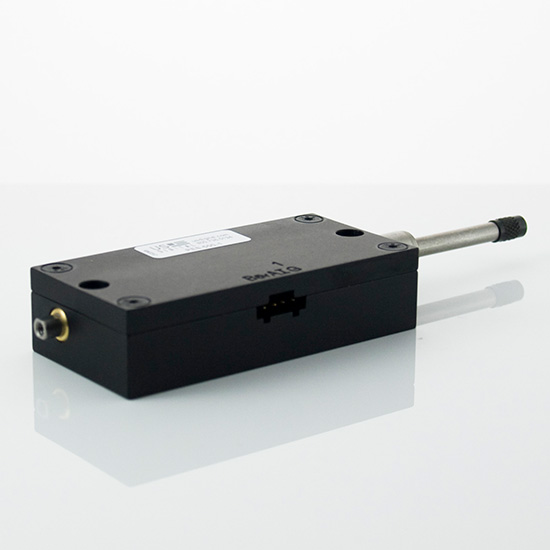

PE LINEAR PROBE ENCODER

• Standard 3/8 in. diameter mounting stem
• Compact design
• Linear ranges from 1 in. to 2 in.
• 120 CPI to 2,000 CPI ...

More PE Details

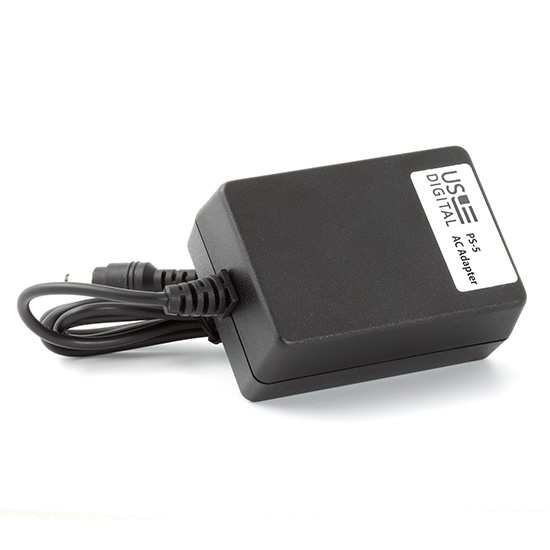

PS-5 REGULATED SWITCHING 5 V (2 A) POWER SUPPLY

The PS-5 is a 10W regulated switching power supply that outputs 5 VDC @ 2 A. The power supply covers voltage inputs ranging from 90 VAC to 264 VAC. The typical efficiency is 65%. The PS-5 has overvoltage, overload, and short circuit protection.The output connector is a 2.1 mm circular plug attached...

More PS-5 Details

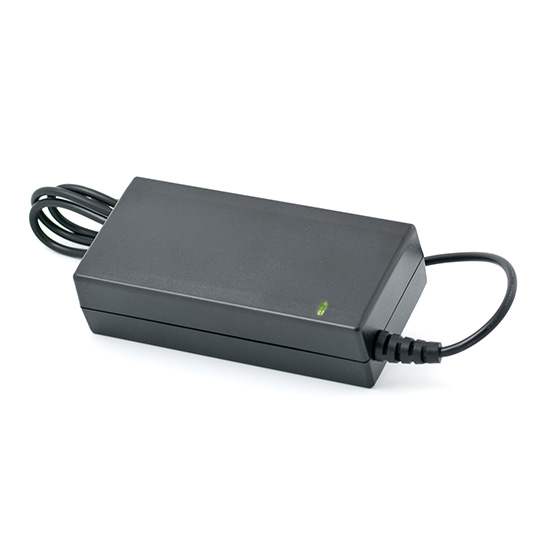

PS-24 REGULATED SWITCHING 24 V (2.5 A) POWER SUPPLY

The PS-24 is a 60 W regulated switching power supply that outputs 24 VDC @ 2.5 A. The power supply covers voltage inputs ranging from 85 VAC to 240 VAC. Typical efficiency is 78%, and the output is short circuit protected. When an output short is present, the PS-24 will switch on every 250 mS for 10...

More PS-24 Details

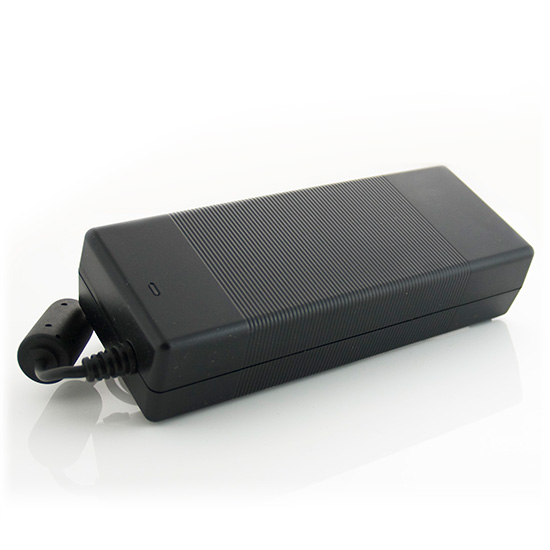

PS-48 REGULATED SWITCHING 48 V (2.5 A) POWER SUPPLY

The PS-48 is a 120 W regulated switching power supply that outputs 48 VDC @ 2.5 A. The power supply covers voltage inputs ranging from 100 VAC to 240 VAC. Typical efficiency is 86%, and the output is short circuit protected. When an output short is present, the power supply will try and switch on...

More PS-48 Details

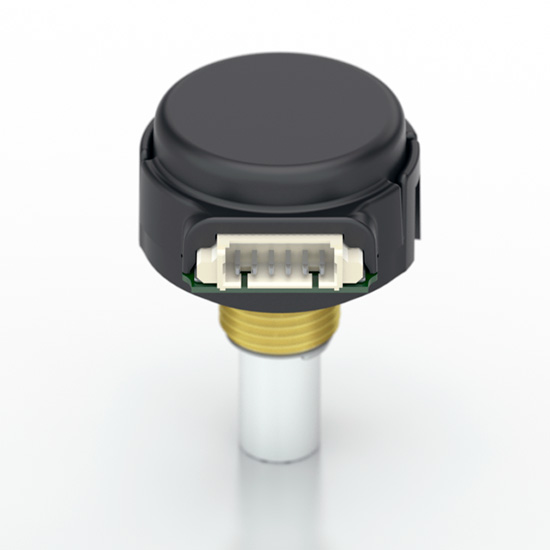

S4 MINIATURE OPTICAL SHAFT ENCODER

• Miniature size
• Low High retention snap-in polarized connector
• Tracks from 0 to 30,000 cycles/sec
• Ball-bearing option tracks up to 10,000 RPM ...

More S4 Details
