Connectors

Connectors for use with US Digital's encoders and other products, including inclinometers, motor drivers, and digital displays. Many are also available as a termination on a cable.

SHOW ALL ACCESSORIES

Showing All Connectors

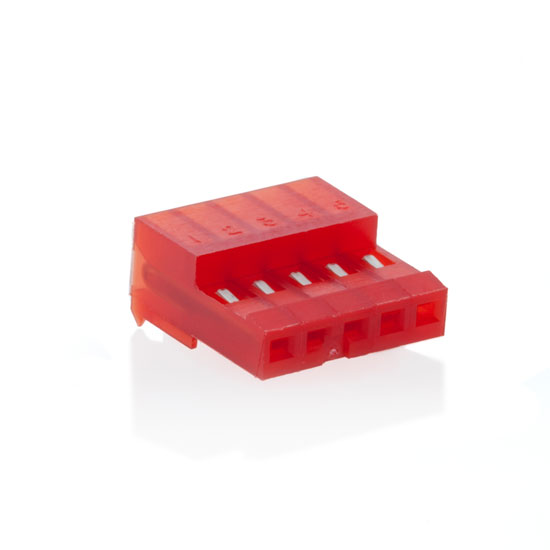

CON-C5 5-pin High Retention Connector

A 5-pin TE Connectivity connector with a choice of 22 AWG (Red) 3-640440-5, 24 AWG (White) 3-640441-5, or 26 AWG (Blue) 3-640442-5. Compatible with US Digital products E2, E3, H1, H3, S1, S2, EM1, EM2.

More CON-C5 Details

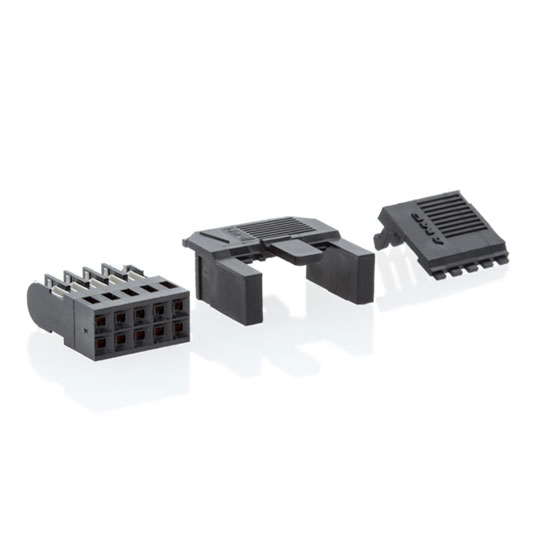

CON-C10 10-pin High Retention Connector

A 10-pin TE Connectivity connector consisting of pre-loaded IDC housing (1-102694-0), a polarizing cover (102537-3), and a strain relief cover (102536-3) for 22-26 AWG wires. It is compatible with US Digital PC4 cable driver.

More CON-C10 Details

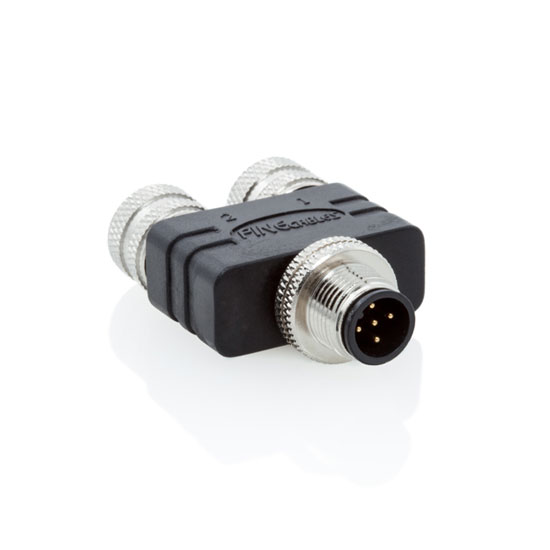

CON-CAN-MFF T7 BUS Splitter - 1M to 2F Connector

A T7 RS232 or RS485 bus splitter, 3-port, with 1 male and 2 female connections, sealed against dust.

More CON-CAN-MFF Details

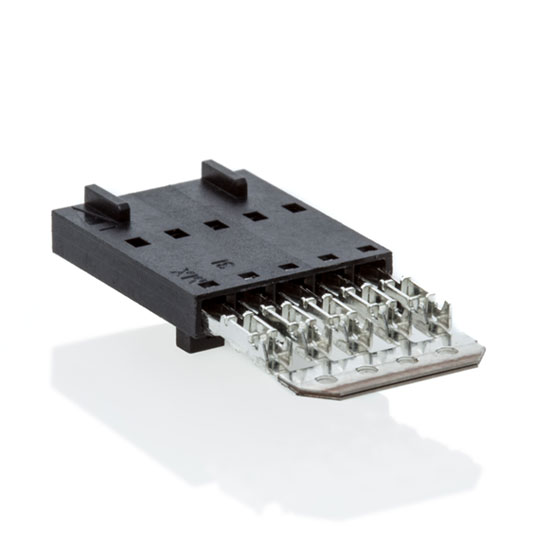

CON-FC5 5-pin Latching Connector

A 5-pin Molex polarized latching connector with contact options for 22 AWG (14-56-7052), 24 AWG (14-60-0052), 26 AWG (14-60-0054), or 28 AWG (14-60-0056). The connector is compatible with US Digital E5, E6, ED4, H5, H6, HB5M, HB6M, S5, S6, QSB and USB4.

More CON-FC5 Details

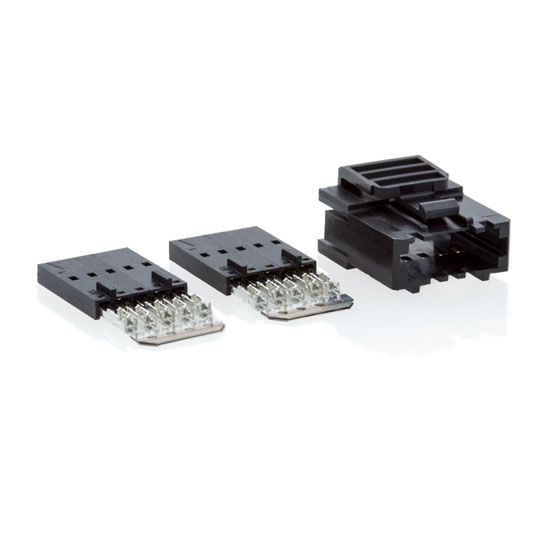

CON-FC10 10-pin Latching Connector

A 10-pin Molex connector consisting of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058) for 24 AWG wires. A Molex crimper tool utilizes a module (62100-0700), and a pistol-grip hand tool (636000478). The connector is compatible with US Digital E5, E6, ED4, H5, H6, HB5M,...

More CON-FC10 Details

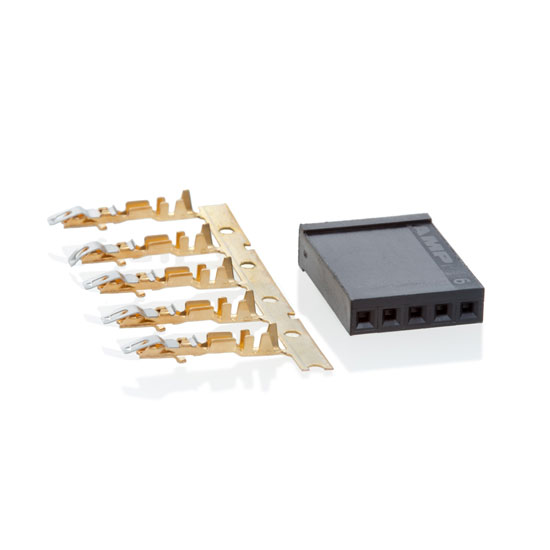

CON-LC5 5-pin High-Retention Connector

A 5-pin TE Connectivity connector consisting of a housing (1-87175-2) and 5 socket contacts (87165-1) for 22-26 AWG wires. Compatible with US Digital products E2, E3, H1, H3, S1, S2, EM1, EM2.

More CON-LC5 Details

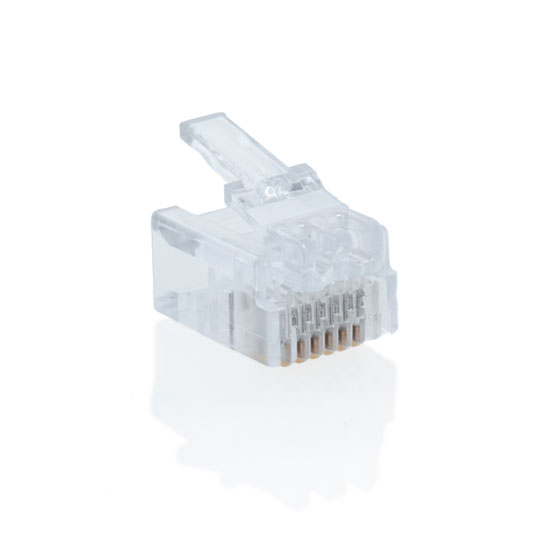

CON-MD6 6-pin Modular Connectors

A 6-pin Adam Tech modular connector for flat (MTP-66-G).or round (MTPR-66-G) cables. Compatible with US Digital A2.

More CON-MD6 Details

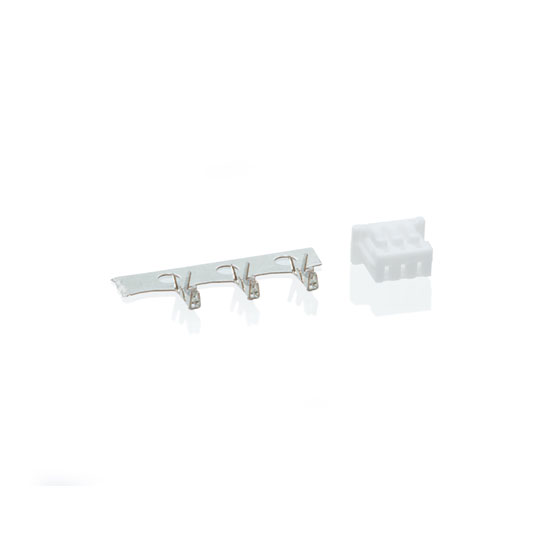

CON-MIC3 3-pin High Retention Connector

A 3-pin Molex connector consisting of a housing (51021-0300) and 4 Crimp Terminals (50079-8001) for 26-28 AWG wires. Compatible with US Digital MA3 and MAE3.

More CON-MIC3 Details

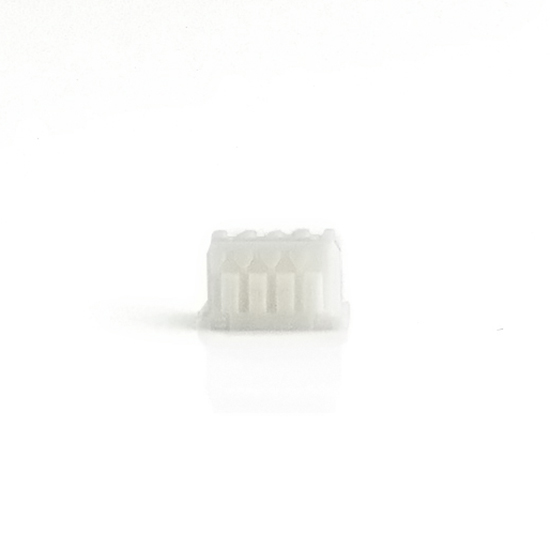

CON-MIC4 4-pin High Retention Connector

A Molex 4-pin connector consisting of a shell (51021-0400) and 4 Crimp Terminals (50079-8001) for 26-28 AWG wires. Compatible with US Digital's E4T, E8T, and S4T encoders.

More CON-MIC4 Details

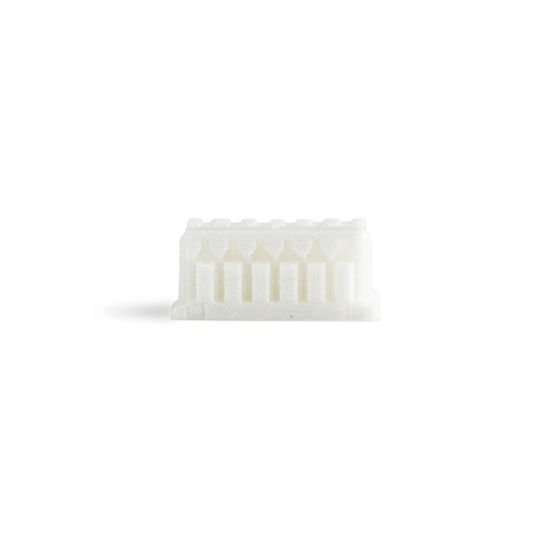

CON-MIC6 6-pin High Retention Connector

A Molex 6-pin connector consisting of a housing (51021-0600) and 6 Crimp Terminals (50079-8001) for 26-28 AWG wires. Compatible with US Digital's E4T, E8T, and S4T encoders.

More CON-MIC6 Details

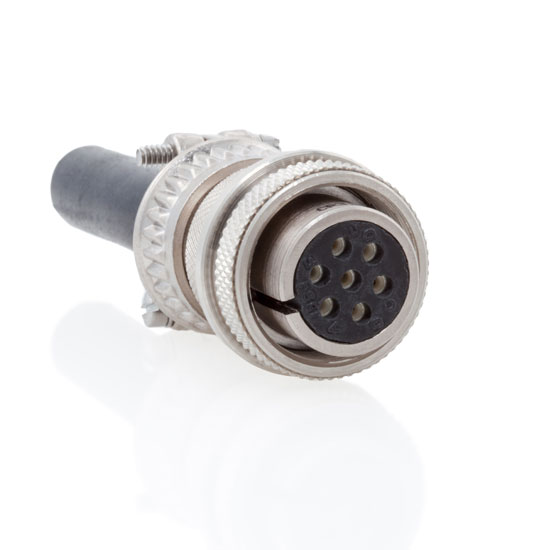

CON-RC7 7-pin Round MIL-DTL-5015 Connector

A 7-pin MIL-DTL-5015 female connector (Amphenol PN ACS06E16S-1S or equivalent) for 18-24 AWG wire (solder pins). Compatible with the HD25 encoder.

More CON-RC7 Details

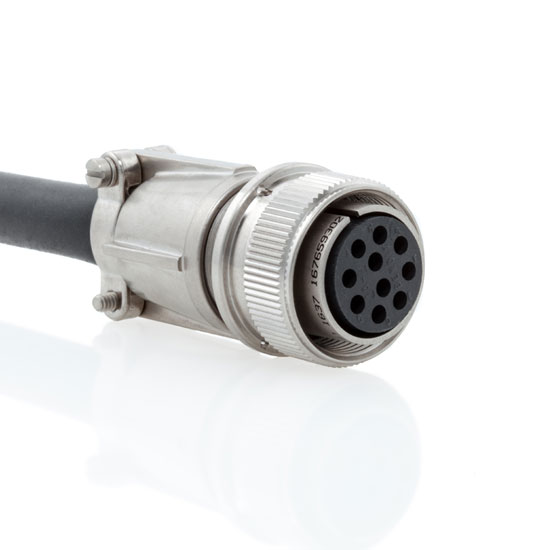

CON-RC10 10-pin Round MIL-DTL-5015 Connector

A 10-pin MIL-DTL-5015 female connector (Amphenol PN ACS06E18-1S or equivalent) for 18-24 AWG wire (solder pins). It is compatible with the HD25 and HD25A encoders.

More CON-RC10 Details
