Interfaces

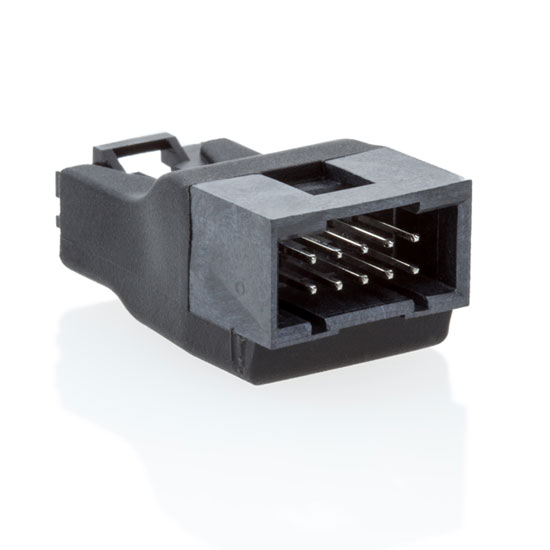

EA Incremental Encoder Adapter

• Single-ended driver or differential driver/receiver available
• Three digital channels (A/B/I encoder signals) per adapter
• Variety of connector options

More EA Details

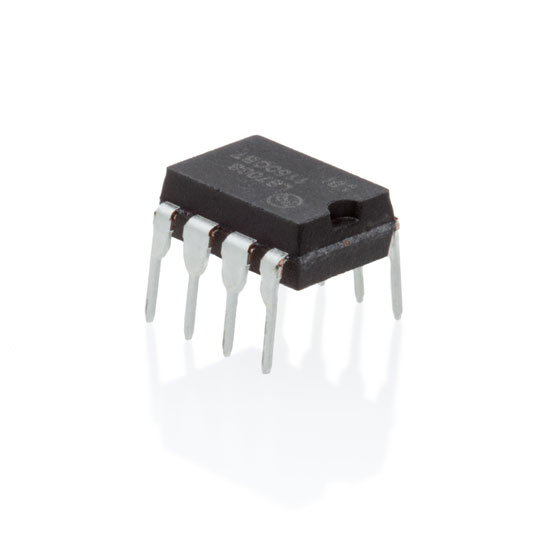

LS7083N Encoder to Counter Interface Chip

• x1 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7083N Details

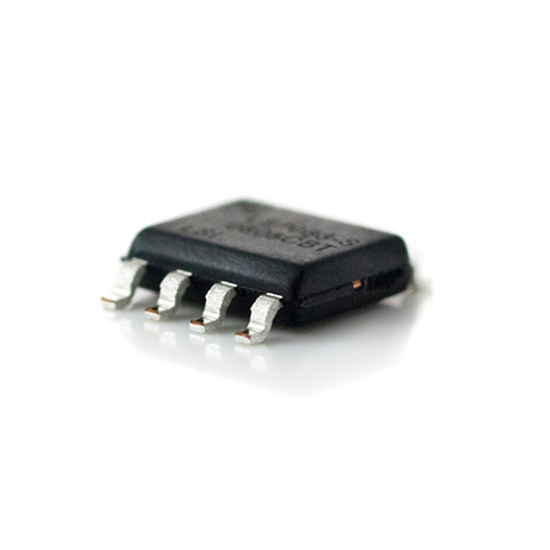

LS7083N-S Encoder to Counter Interface Chip

The LSI Computer Systems IC allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7083N-S outputs can connect directly to the up and down clock inputs of counters such as 74193 or 40193.The next generation Encoder to...

More LS7083N-S Details

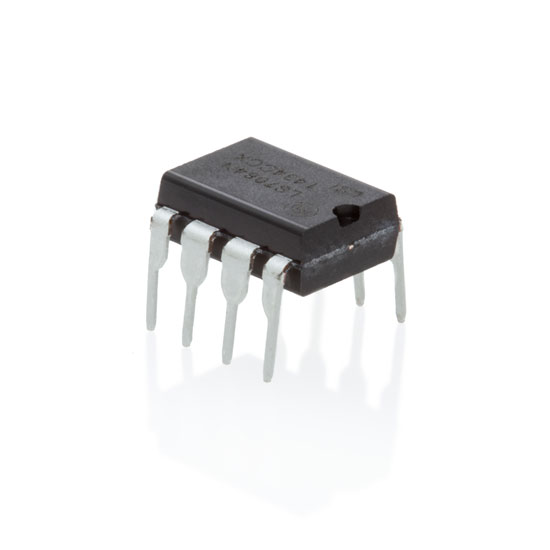

LS7084N Encoder to Counter Interface Chip

• x1 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7084N Details

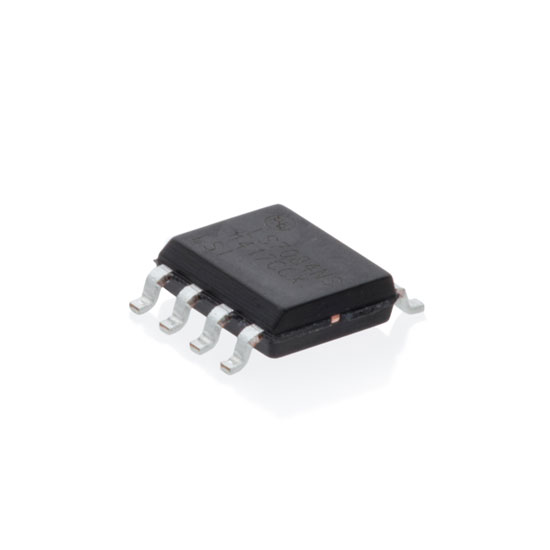

LS7084N-S Encoder to Counter Interface Chip

• x1 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin SOIC package ...

More LS7084N-S Details

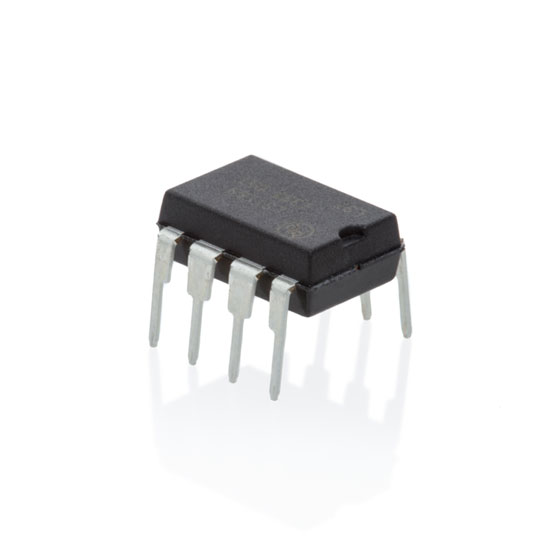

LS7183N Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7183N Details

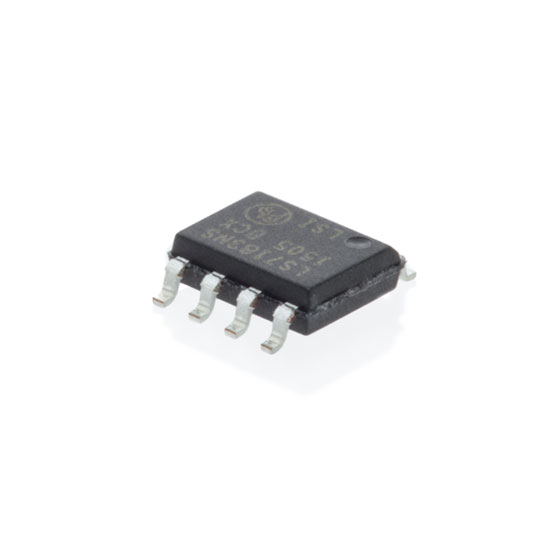

LS7183N-S Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin SOIC package ...

More LS7183N-S Details

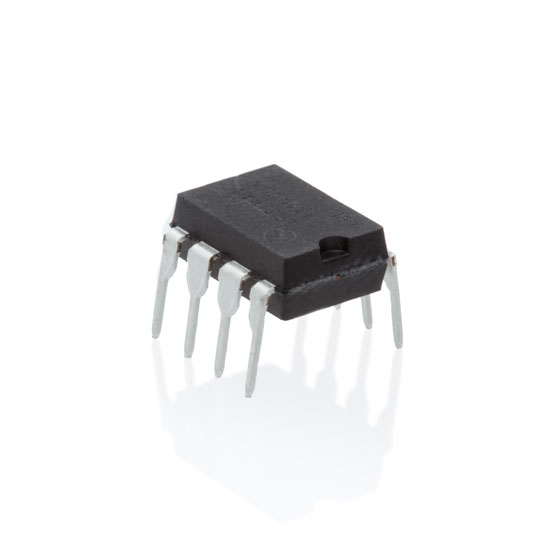

LS7184N Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7184N Details

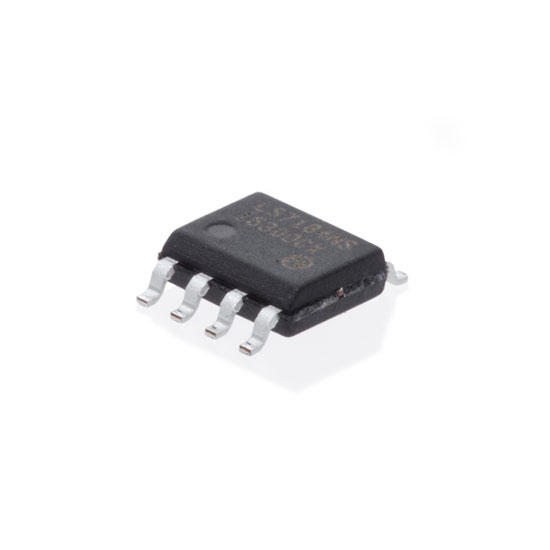

LS7184N-S Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin SOIC package ...

More LS7184N-S Details

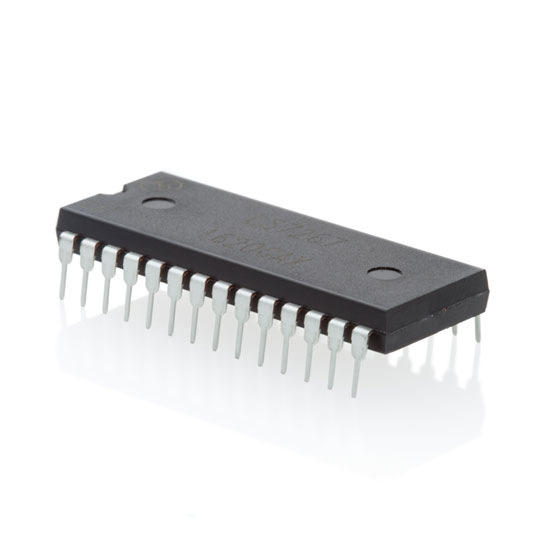

LS7267 24-BIT DUAL-AXIS Quadrature Counter

• Dual 24-bit counters to support X and Y axes in motion control applications
• Dual 24-bit comparators
• Digital filtering of input quadrature clocks
• Programmable 8-bit separate filter clock prescalers ...

More LS7267 Details

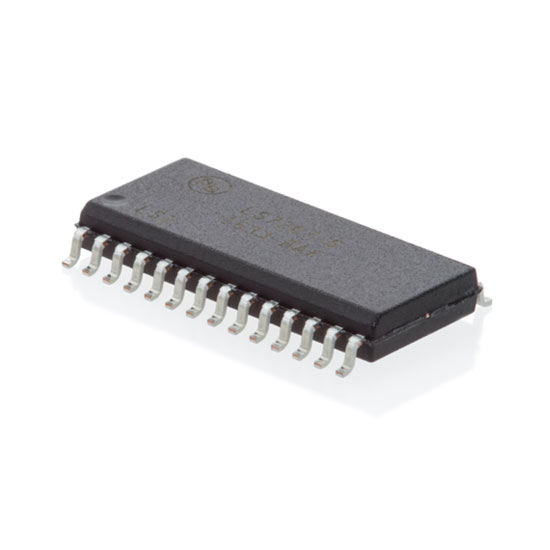

LS7267-S 24-BIT DUAL-AXIS Quadrature Counter

• Dual 24-bit counters to support X and Y axes in motion control applications
• Dual 24-bit comparators
• Digital filtering of input quadrature clocks
• Programmable 8-bit separate filter clock prescalers ...

More LS7267-S Details

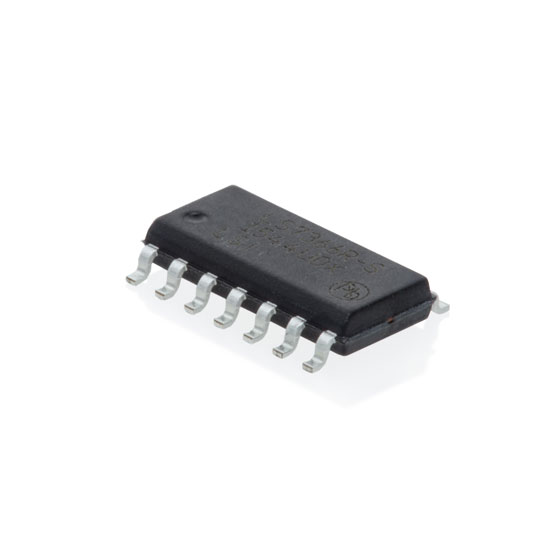

LS7366R-S 32-Bit Quadrature Counter with Serial Interface

• Operating voltage: 3V to 5.5V (VDD - VSS)
• 5V count frequency: 40MHz
• 3V count frequency: 20MHz
• 32-bit programmable counter ...

More LS7366R-S Details

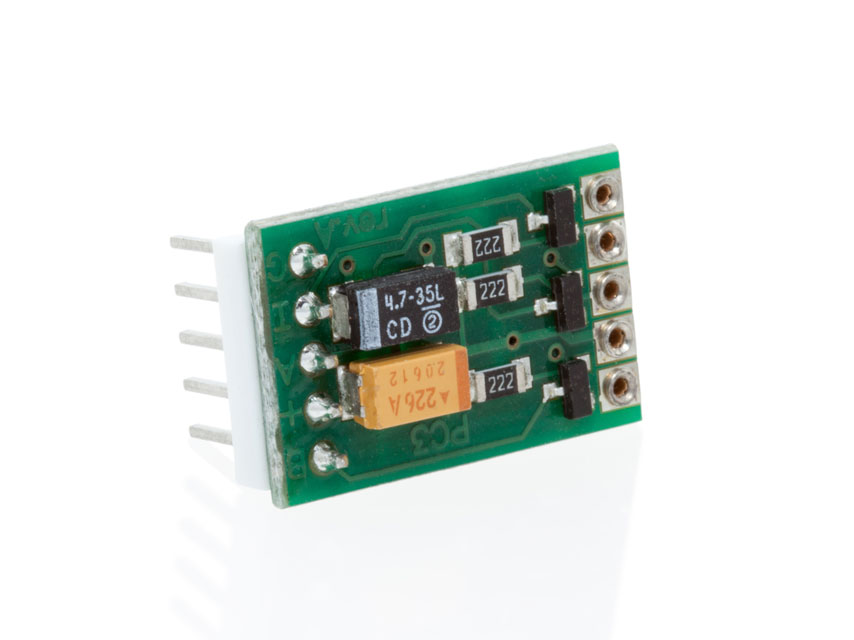

PC3 Encoder Open Collector Cable Driver

The PC3 provides single-ended, open collector outputs and includes a switching power regulator that accepts a power supply from 9.5 to 32 volts. The PC3 is intended for applications where 5VDC is not available to power the encoder or higher voltage output from the encoder channel is needed. To...

More PC3 Details

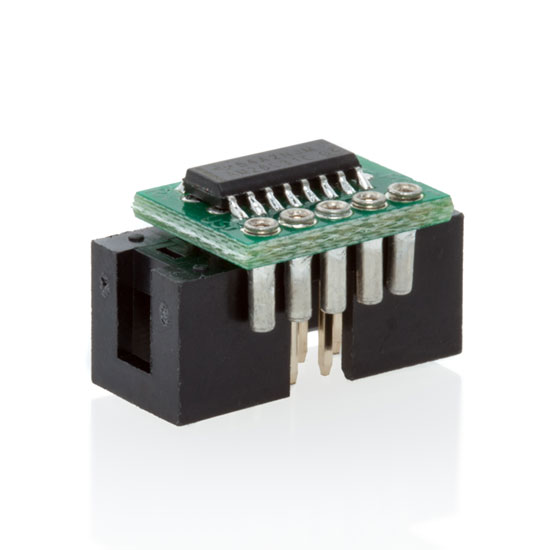

PC4 Incremental Encoder Cable Driver

The PC4 is a small, plug-in RS-422 cable driver board that drives long cables up to one thousand feet using differential signaling to improve noise immunity. The PC4 can be used with the E2, E3, H1, H3, S1, and S2 encoders. Each board has a 5-pin socket designed to plug into the 5 pins of the...

More PC4 Details

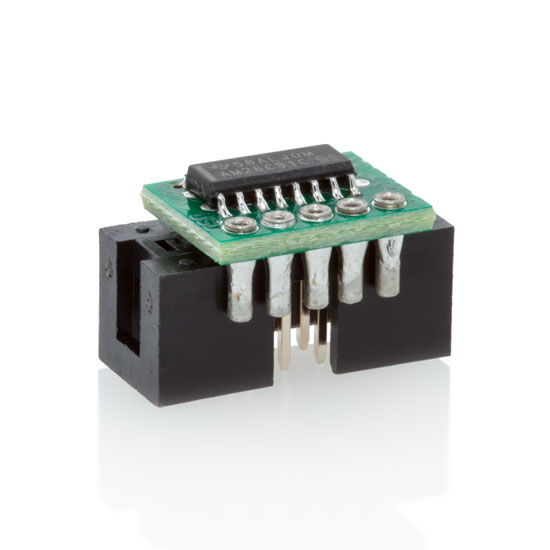

PC5 Broadcom/Avago Compatible Incremental Encoder Cable Driver

• Broadcom/Avago HEDL compatible output

More PC5 Details

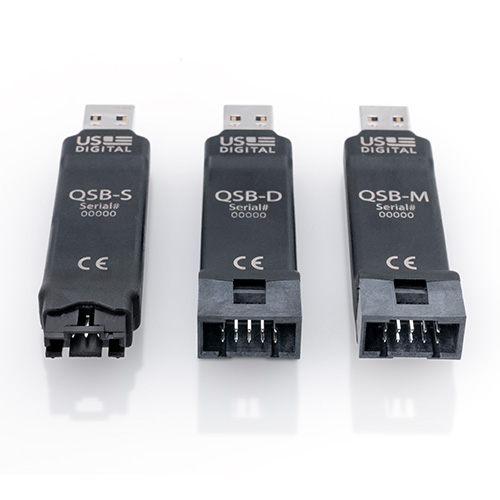

QSB Quadrature to USB Adapter

• Low-cost, easy-to-use USB (Type A) adapter
• QSB-S and QSB-D reads single-ended or differential quadrature, PWM and analog encoders
• QSB-M adds four analog and four digital I/O pins and 1 channel stepper motor control to QSB-S
• Reads quadrature count rate up to 6 MHz ...

More QSB Details

SEI-USB SEI to USB Adapter

• USB 1.1 device communicates at 12 Mbit/sec
• Compatible with USB 2.0 hubs and host adapters
• Supports up to 15 total devices on the SEI bus
• Supports SEI bus lengths up to 1,000 feet, depending on the number of devices attached. ...

More SEI-USB Details

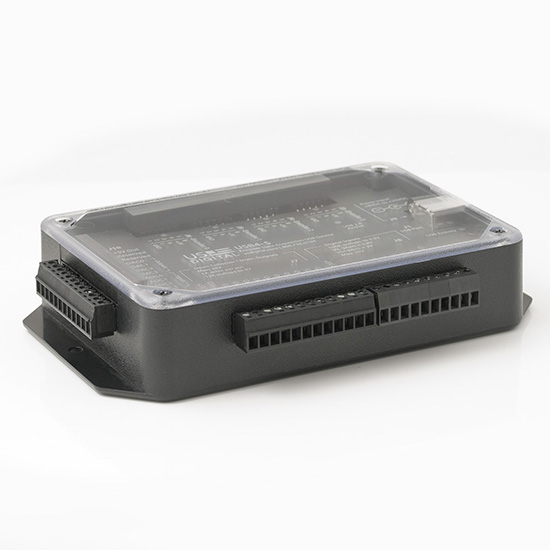

USB4 Encoder Data Acquisition USB Device

• Real-time tracking of up to 4 incremental encoders with or without index (up to 5 MHz encoder input frequency)
• 4 channel pulse width, pulse period and RPM measurement
• Available with single-ended or differential encoder inputs, optional DIN rail mounting
• 8 digital outputs, 8 digital inputs, 4 A/D inputs , 4 D/A outputs ...

More USB4 Details
