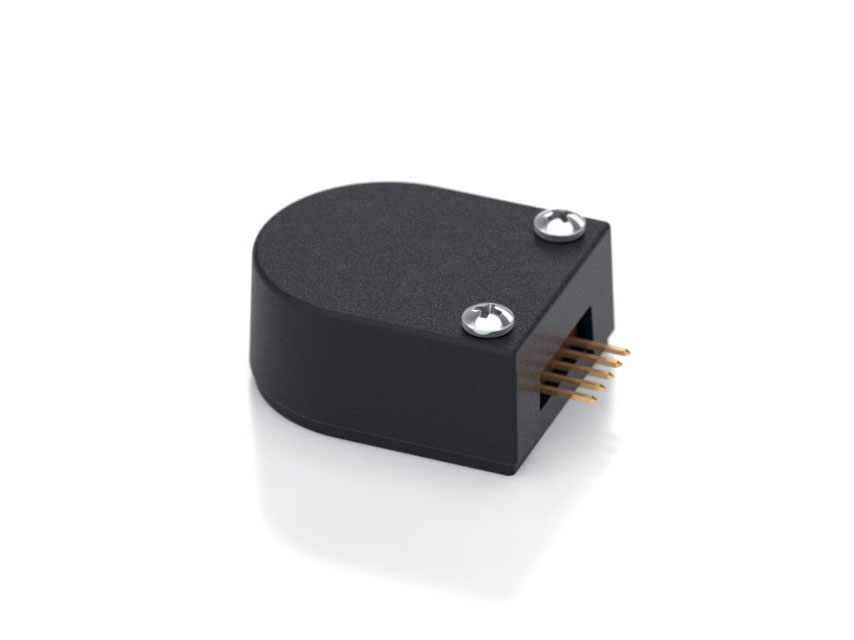

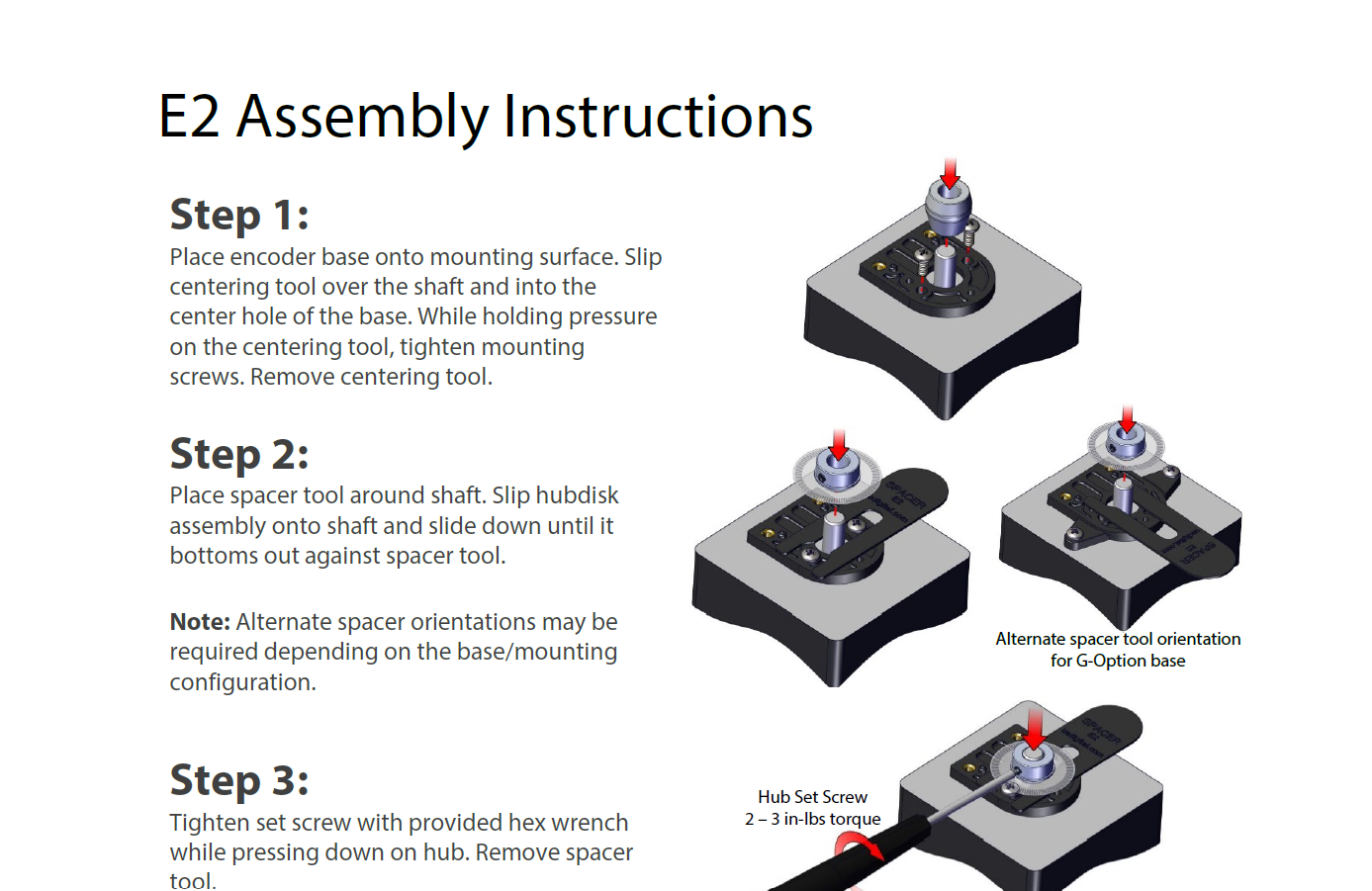

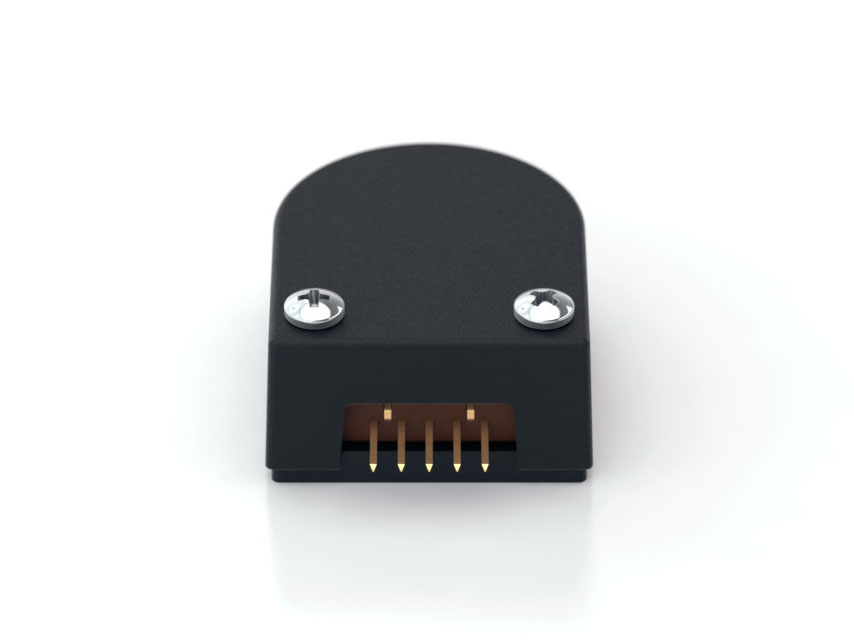

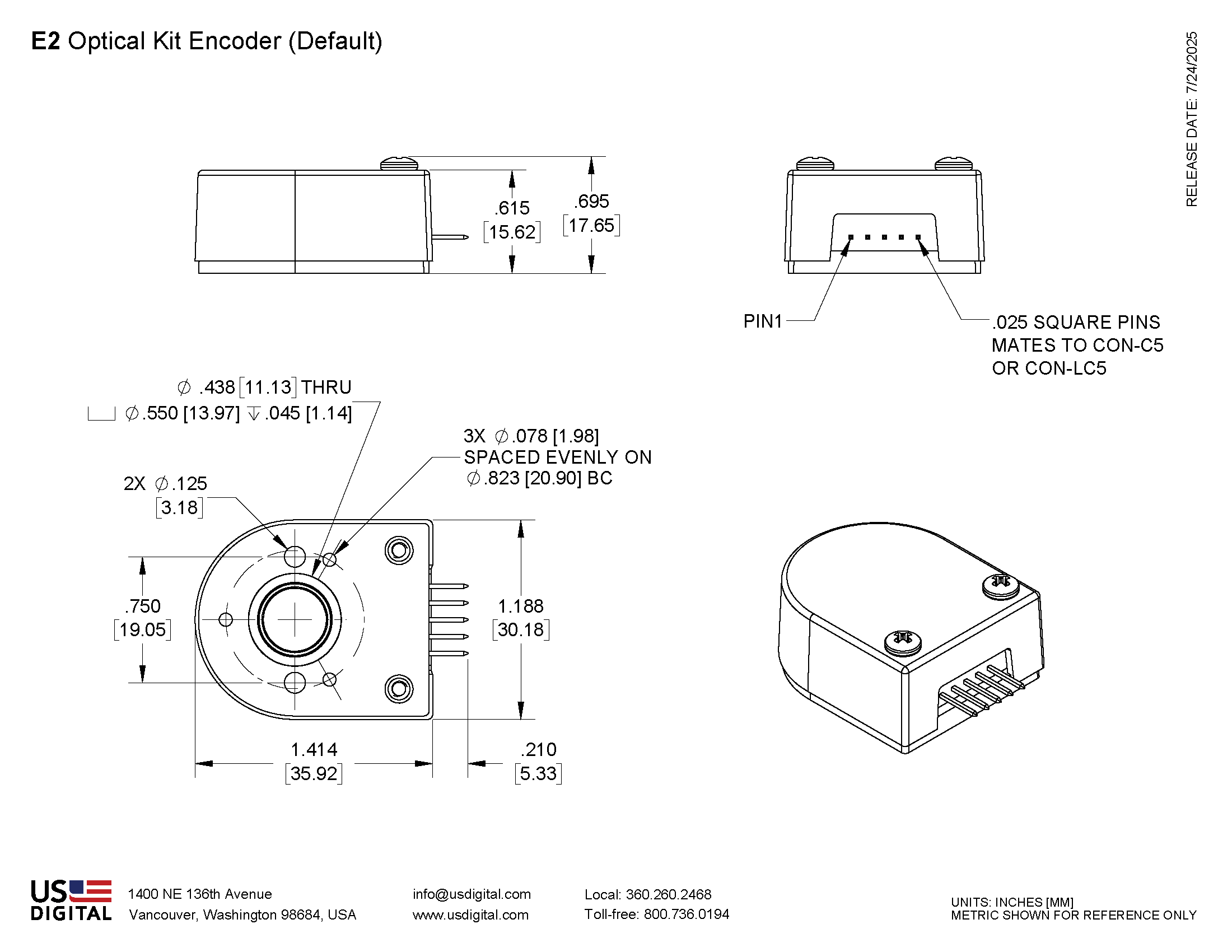

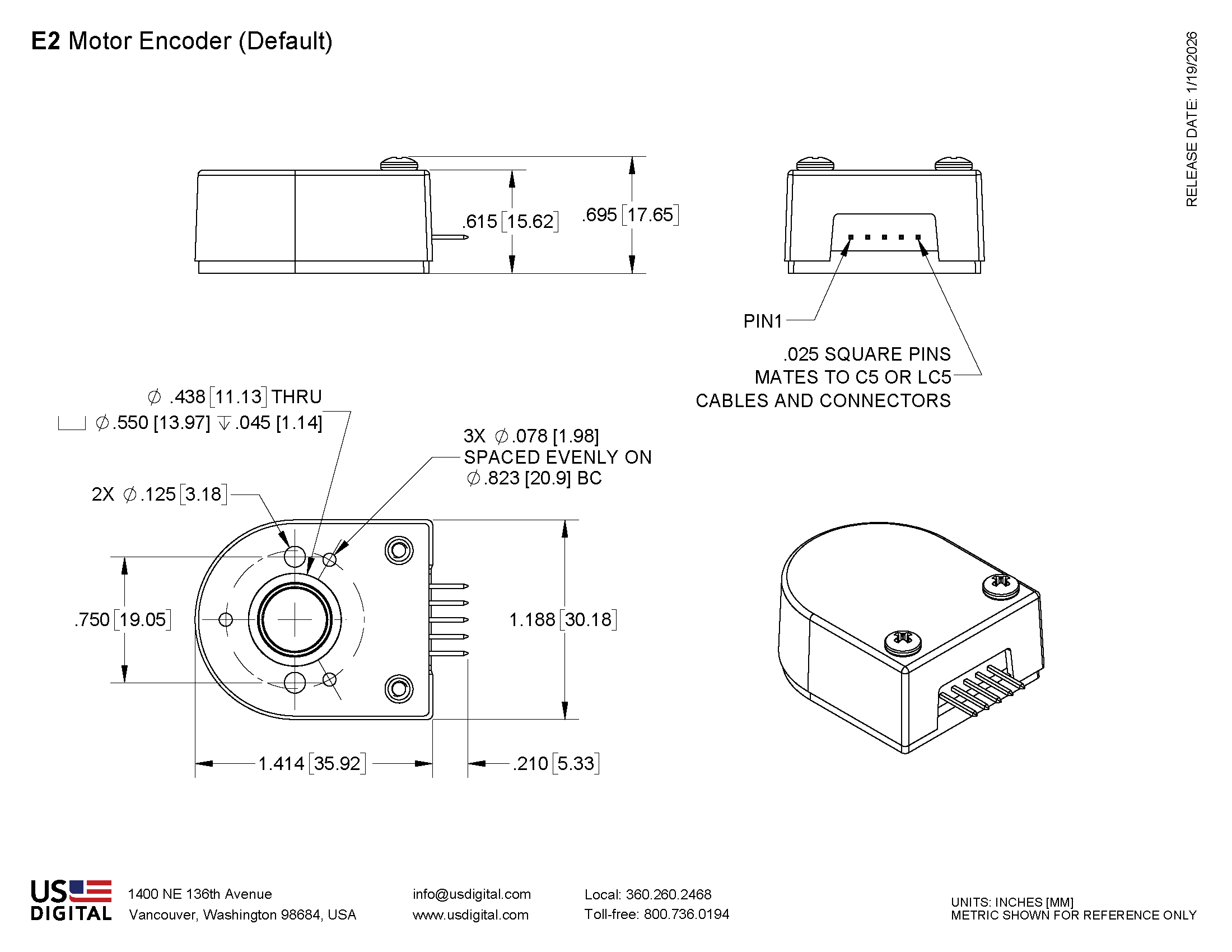

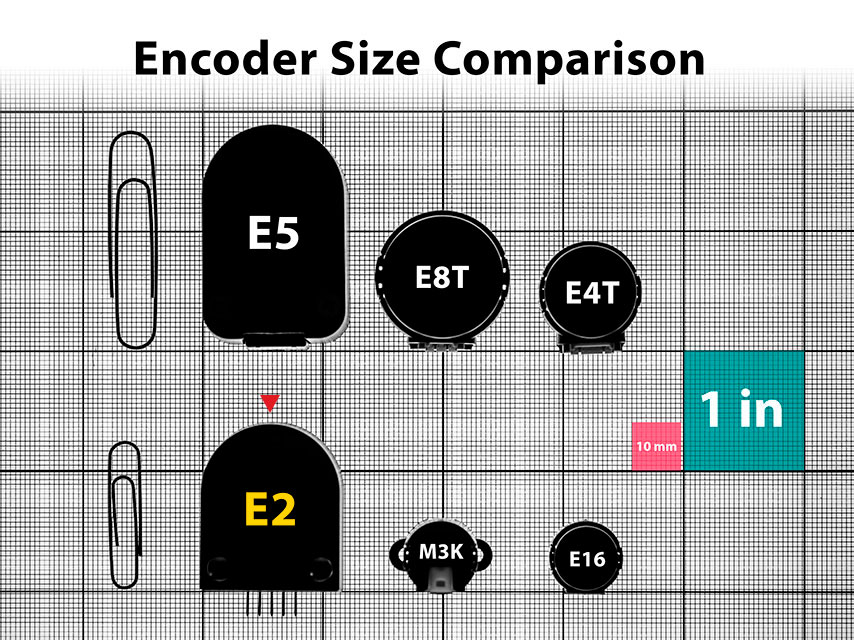

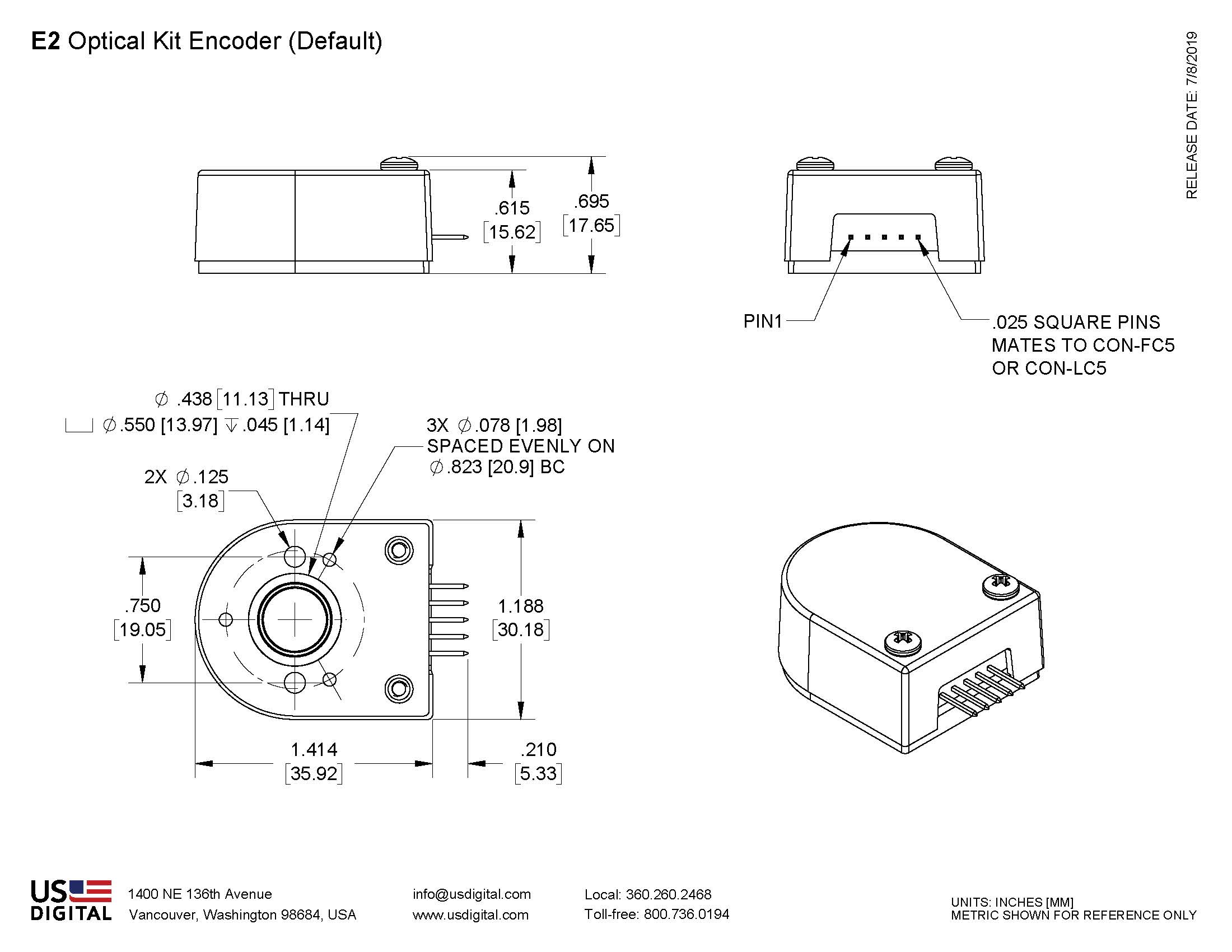

US Digital E2 Motor Encoder Description The US Digital E2 motor encoder mounts directly to a motor or other rotating shaft. This optical encoder features a rugged, glass-filled polymer housing and is designed for easy installation and removal.

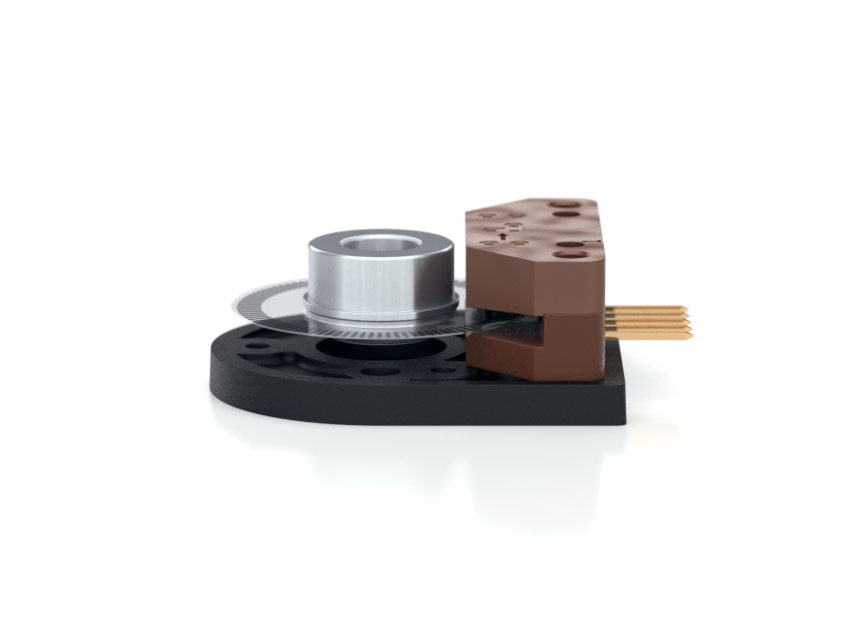

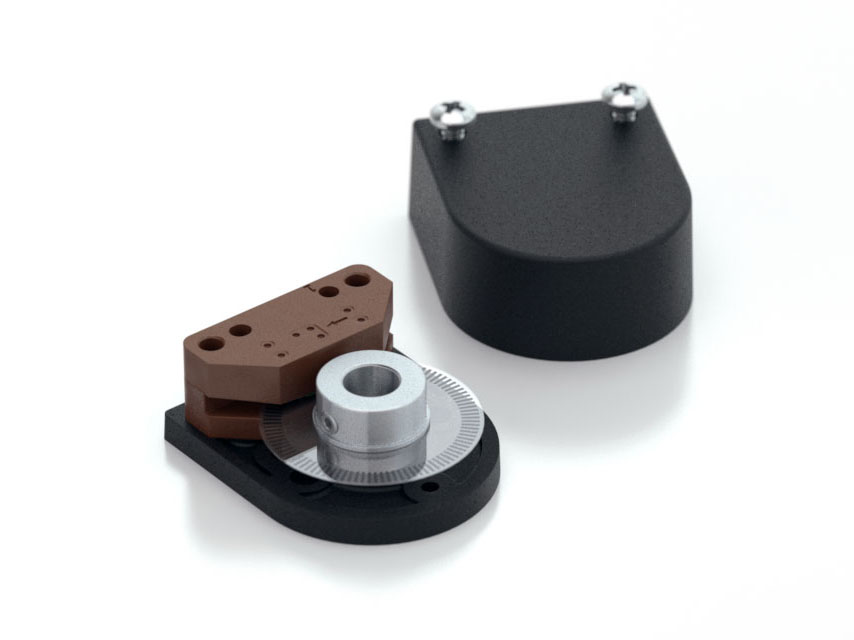

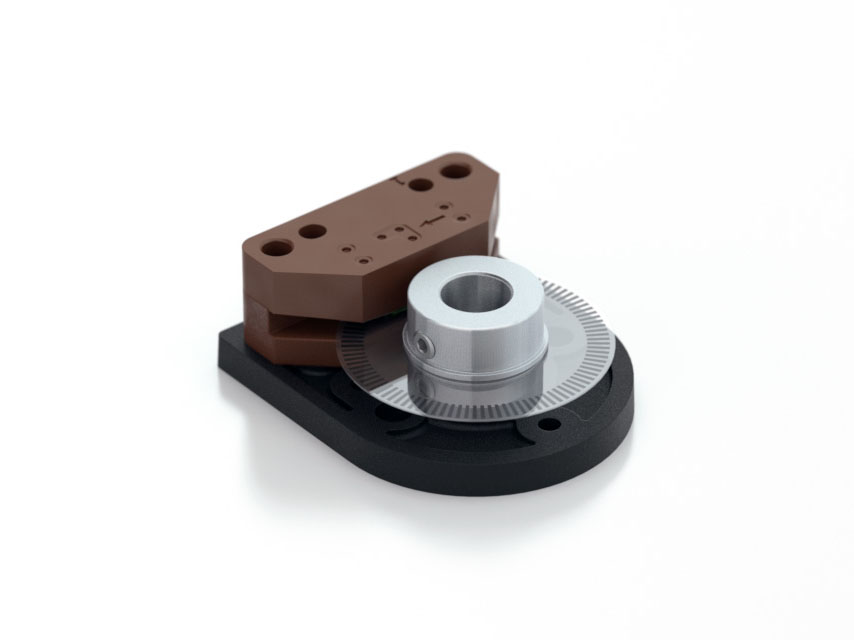

The E2 rotary encoder contains a precision machined aluminum hub with a specially patterned Mylar disk. This disk, in combination with our proprietary optical encoder module, creates a system that is highly tolerant to mechanical misalignment.

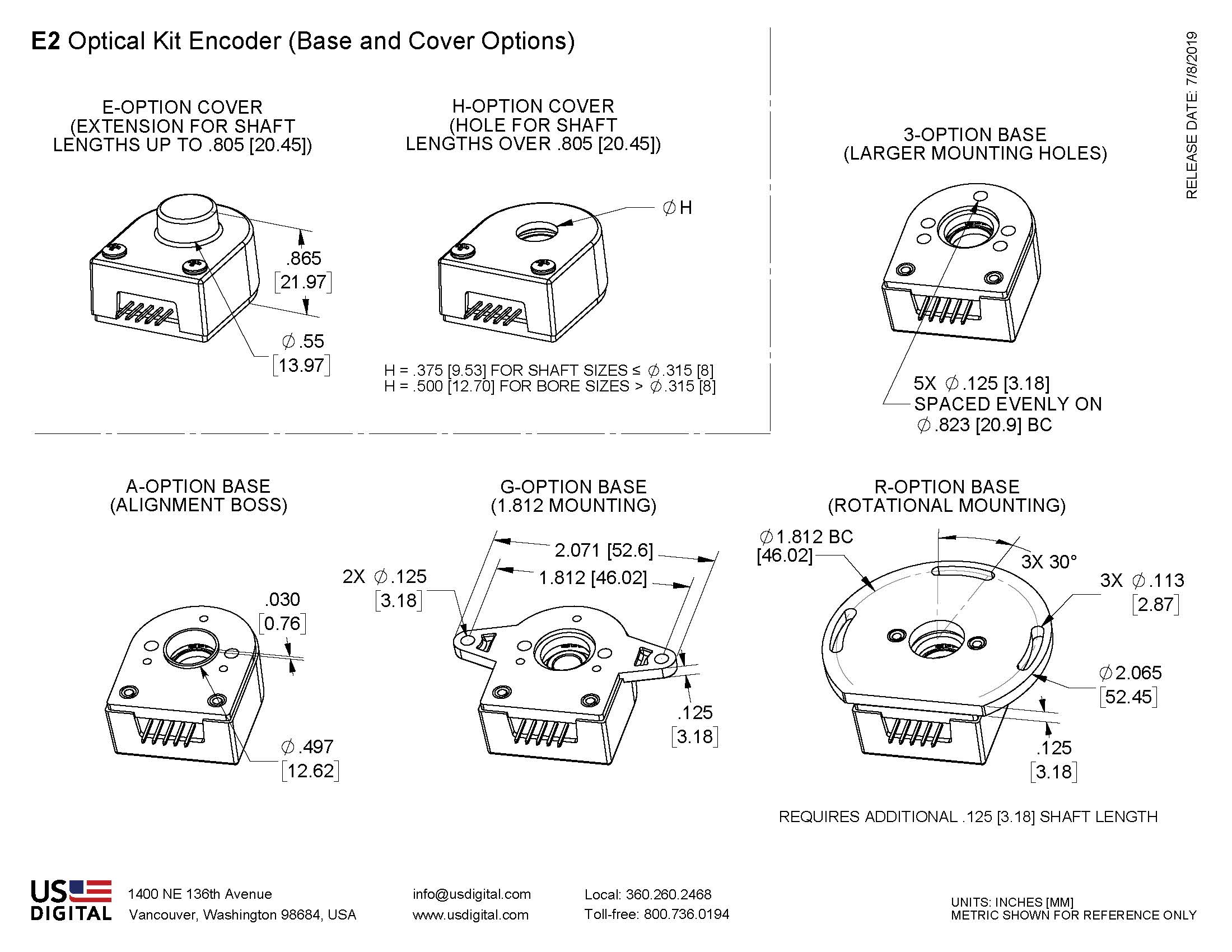

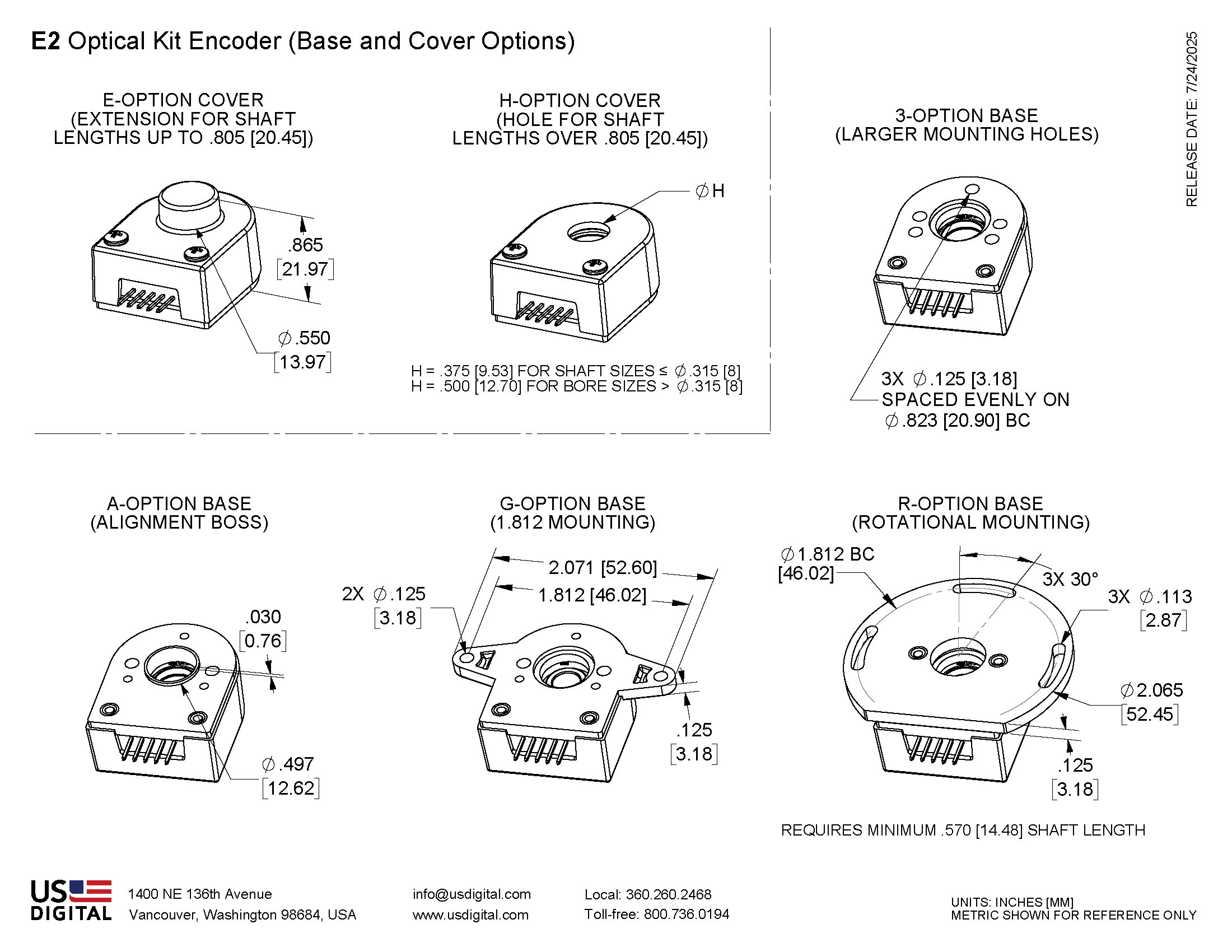

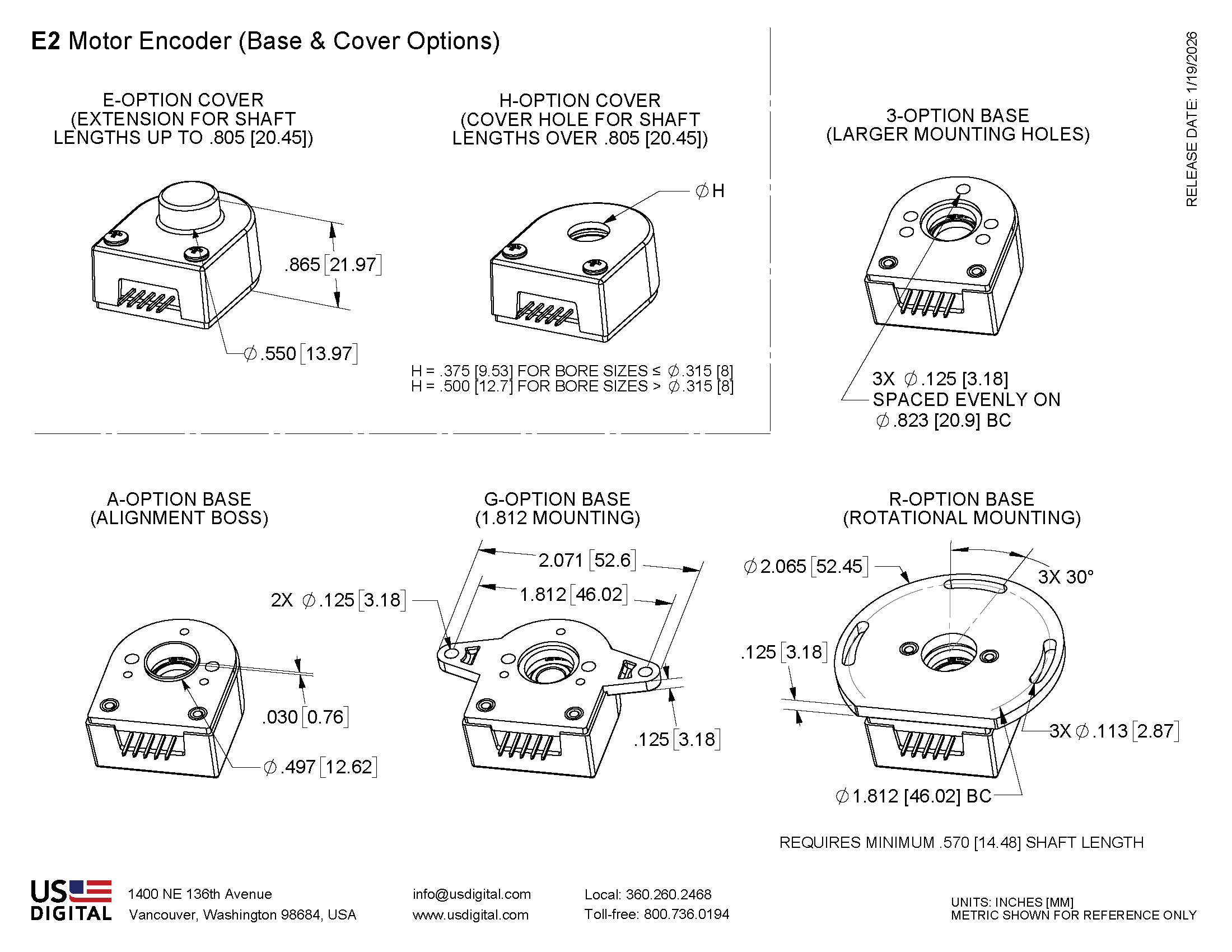

The E2 is available with five base configurations and three cover styles, which allow it to fit a wide range of applications. The output for this optical rotary encoder is single-ended. If your application requires a differential output (due to needing a cable over 10 feet or is located in an electrically noisy environment) you can either add a PC4 / PC5 differential line driver or check out our E5 , which includes an optional differential output. This incremental encoder is designed for use with a high-retention connector. After making each selection in the Product Configurator, compatible cables and connectors will be displayed below and must be purchased separately.
BROADCOM/AVAGO REPLACEMENTS: US Digital's E2 encoder may be used as direct replacements for Avago HEDM-5500, HEDM-5600, HEDS-5500, HEDS-5600
Additional Information
Product Notes
Cables and connectors are not included and must be ordered separately.
US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
Datasheet
